Seasonic Prime TX-1600 Noctua Edition, Ultra-Quiet Fully Modular 1600W 80 Plus Titanium Efficiency ATX 3.1 PC Power Supply (Black/Brown) with US AC Power Cord

Description

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Product Description

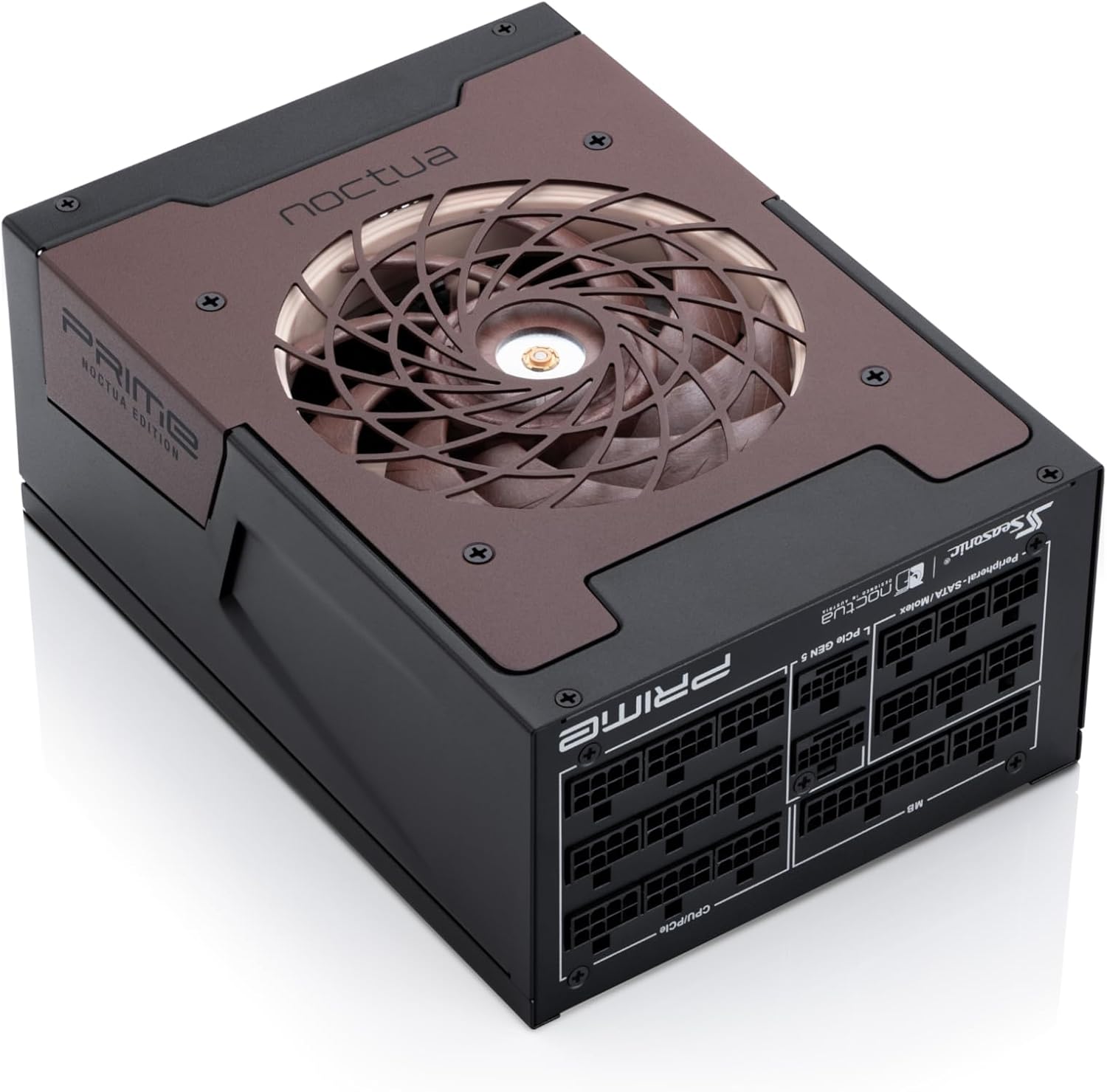

Seasonic is renowned as one of the leading manufacturers of premium grade PC power supplies and PRIME TX is their award-winning, 80 PLUS Titanium certified flagship series featuring state-of-the-art electronic designs, first-class quality components, cutting-edge performance and exceptional efficiency. The Noctua Edition of the top-end TX-1600 model uses this superb platform and combines it with the iconic, groundbreaking NF-A12x25 fan as well as a custom designed, highly optimised fan grill, which enable it to run ~8-10dB(A) quieter than the already quiet standard model. Thanks to its semi-passive fan control setup, the TX-1600 Noctua Edition will operate fully passive up to around 50% load at typical ambient temperatures (≤25°C) and only start ramping up the fan slowly as the load or temperature levels increase. This makes it a fantastic choice not only for power-hungry high-end builds, but also for silent systems that do not require as much as 1600W and will therefore have the PSU running mostly with the fan switched off or at near-inaudible speed levels. Even at 100% load, the Noctua Edition runs whisper quiet at ambient temperatures up to 25°C, producing only ~24dB(A) versus ~34dB(A) for the regular model. This massive reduction in noise emission is reflected in an upgrade of Cybenetic’s Lambda average noise level score from A to A++. Topped off with ATX 3.1 and PCIe 5.1 support as well as fully modular, Noctua-themed cables, the Seasonic PRIME TX-1600 Noctua Edition is the ultimate choice for highly demanding PC enthusiasts who require uncompromising quality, class-leading performance and exceptional quietness of operation.

Renowned NF-A12x25 120mm fan

The key to the Noctua Edition’s further improved acoustic performance is Noctua’s renowned NF-A12x25 120mm fan: Ensuring the same safe operating temperature of all internal components, it runs another ~8-10dB(A) quieter than the regular model’s already quiet 135mm fan across the entire fan speed range.

Cybenetics Lambda A++ sound level rating

In Cybenetics acoustic tests, the regular PRIME TX-1600 model was already very quiet with a Lambda A rating and an average noise output of only ~21 dB(A). The Noctua Edition further improved on this excellent result with a further ~8 dB(A) reduction and an average noise level of ~13 dB(A), which led to an upgrade from Lambda A to a Lambda A++ classification.

Highly optimised fan grill

Many power supply fan grill designs are driven by aesthetic considerations and ignore basic acoustic and aerodynamic principles. By contrast, the fan grill of the TX-1600 Noctua Edition has been custom designed and carefully optimised to ensure smooth pressure gradients when the fan blades pass, which results in higher airflow performance and lower noise emission.

ATX 3.1 and PCIe 5.1 compliant

The Noctua Edition of the Seasonic TX-1600 not only complies with the ATX 3.0 and PCIe 5.0 standards. Including a cable with the new 12V-2×6 connector for safely powering top-of-the-line GPUs with high energy consumption such as the NVIDIA GeForce RTX 4090 series, it also meets the updated ATX 3.1 and PCIe 5.1 requirements.

Fully modular Noctua style cables

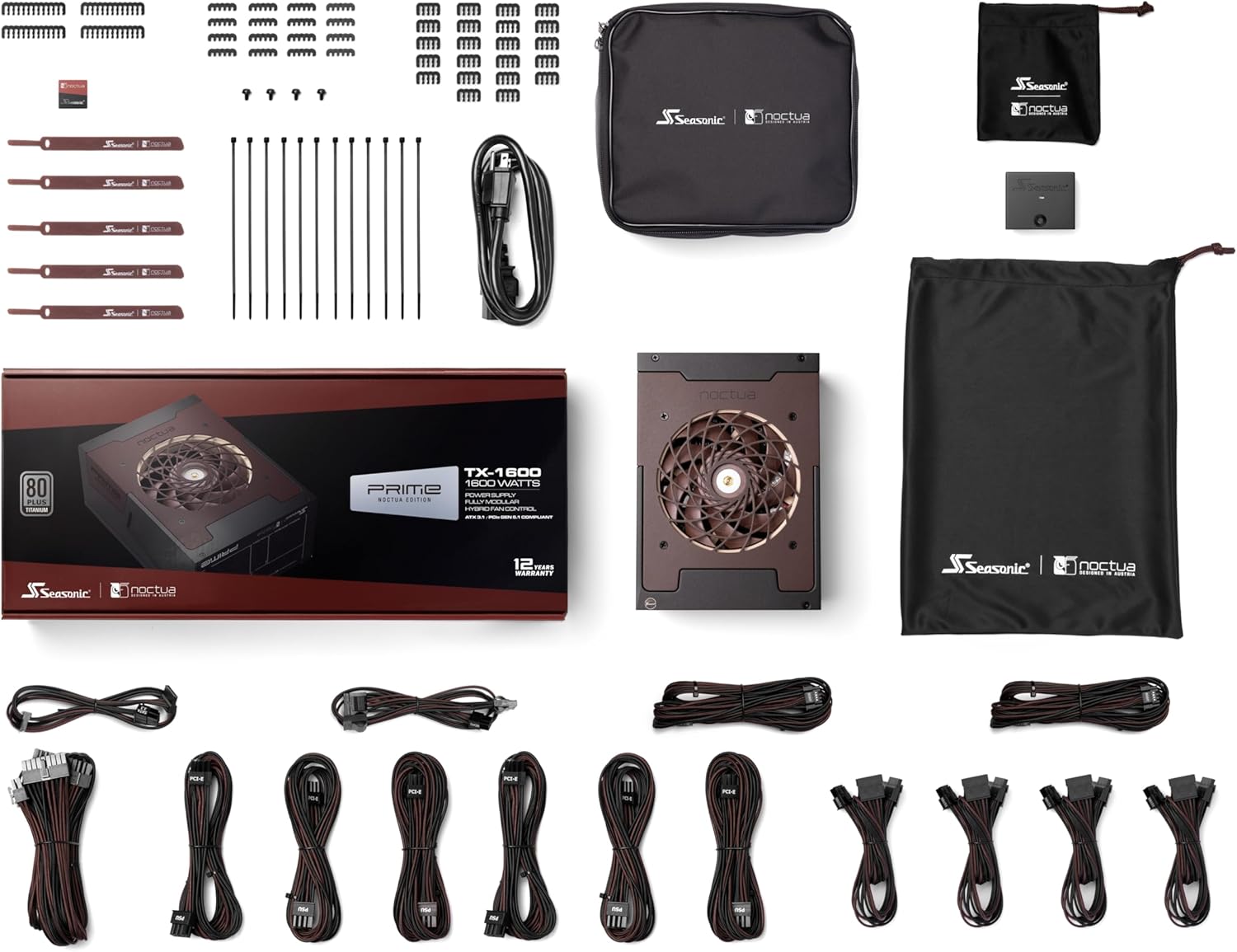

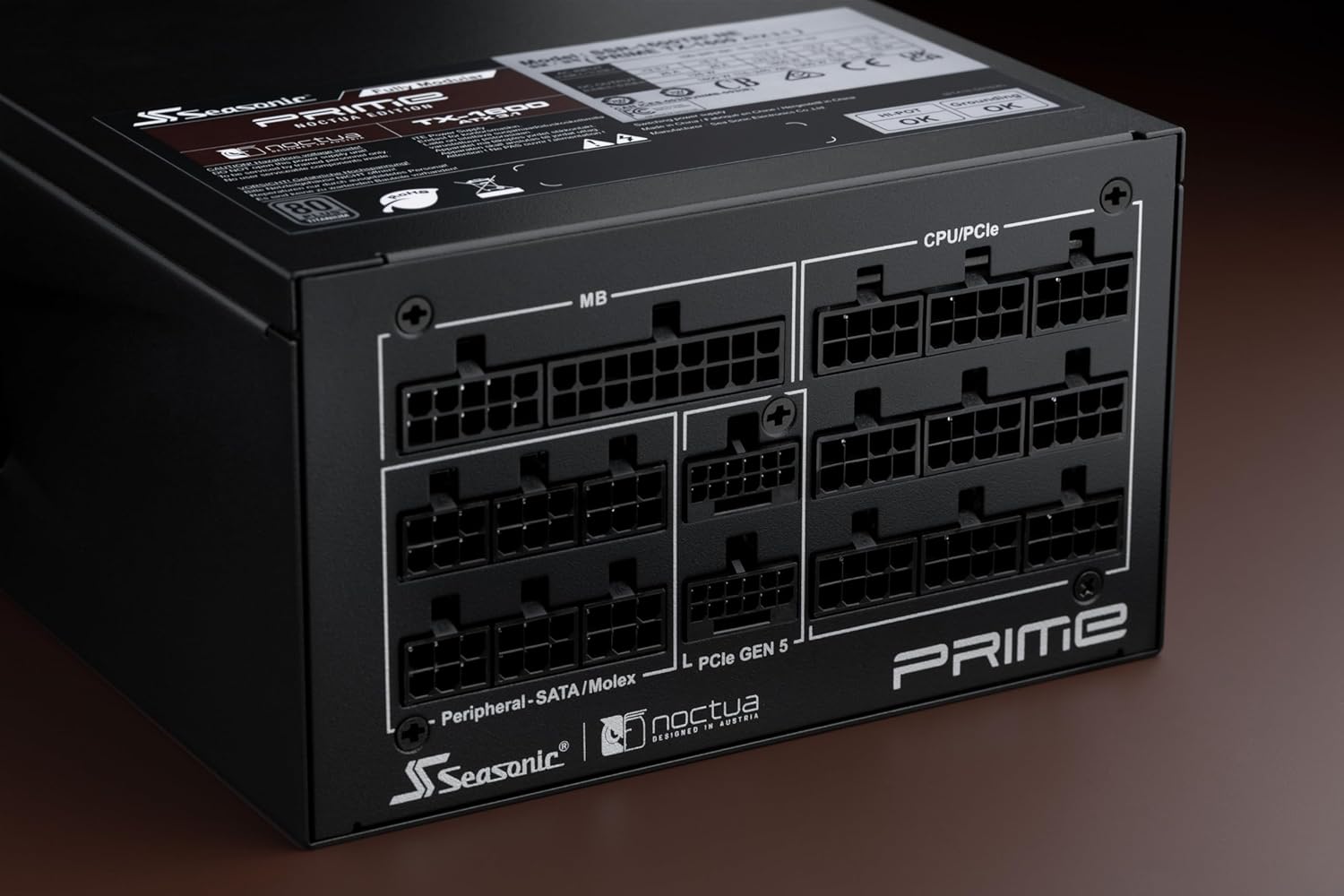

The Seasonic PRIME TX-1600 Noctua Edition comes with fully modular cables for clean and tidy builds without unnecessary cable clutter. With its subtle dark brown accents, the included cable set is perfect for Noctua themed builds and a visual testament to this unique power supply.

Power Supply Specifications

Model PRIME TX-1600 Noctua Edition Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H) Efficiency 80 PLUS Titanium / ENERGY STAR / ErP Lot 6 2013 compliant Protection features OPP / OVP / UVP / SCP / OCP / OTP Hazardous Materials RoHS-5 AC Input Range 100–240 Vac 15–10 A 50–60 Hz 仅200-240 Vac 10 A 50-60 Hz适用于中国地区 and For Korea

Fan Specifications

Fan NF-A12x25 Size 120x120x25 mm Connector & pin-configuration 4-pin PWM Bearing SSO2 Blade geometry A-Series with Flow Acceleration Channels Frame technology AAO (Advanced Acoustic Optimisation) Material Sterrox LCP RPM 2400 RPM Airflow 117.6 m³/h Acoustical noise 28.8 dB(A) Static pressure 3.28 mm H₂O

Ultra-quiet Noctua Edition of the award-winning Seasonic PRIME TX-1600, state-of-the-art electrical performance with steadfast power delivery and ultra-tight voltage regulation for high-performance workstations and gaming PCs – with US AC power cord
Renowned Noctua NF-A12x25 fan and custom designed, highly optimised fan grill for extremely low noise levels (Cybenetics Lambda A++ certification), ~8-10dB(A) quieter than the regular PRIME TX-1600

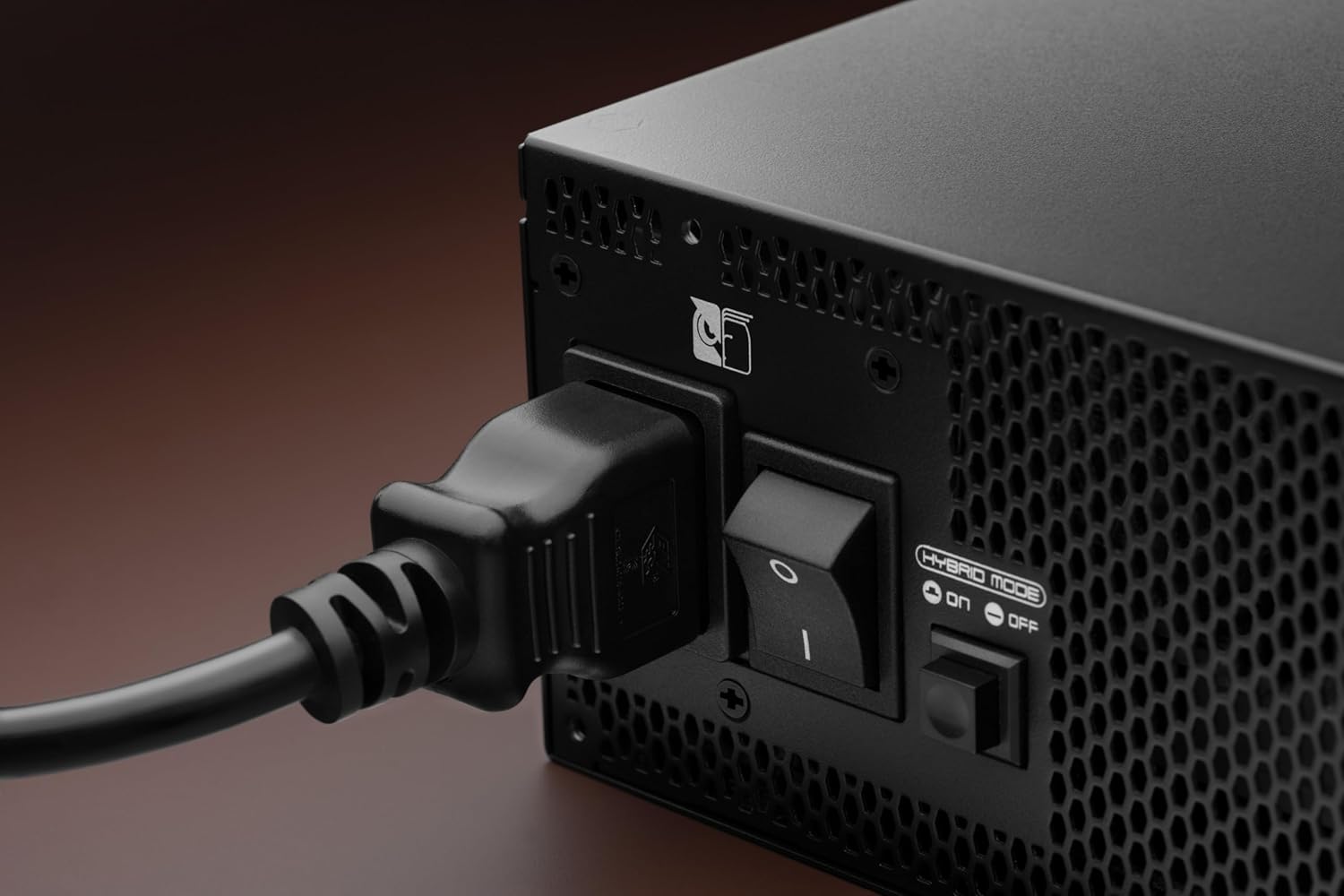

Semi-passive operation: Fan stays off until 50% load at up to 25°C ambient temperature for virtually noise-free operation, slowly ramps up to near inaudible levels with increasing loads: Perfect for powerful PC builds that run almost silent!
ATX 3.1 and PCIe 5.1 compliant, 12V-2×6 connector for safely powering high-end graphics cards such as NVIDIA GeForce RTX 4090 series, backwards compatible with ATX 3.0 and PCIe 5.0
Fully modular, Noctua themed cabling for clean and tidy builds, titanium level energy efficiency (94% at 50% load, 80 PLUS Titanium and Cybenetics ETA Titanium certified) reduces waste heat and power consumption
