Description
Price: $21.99 - $45.99
(as of May 04, 2025 20:57:31 UTC – Details)
Product Description

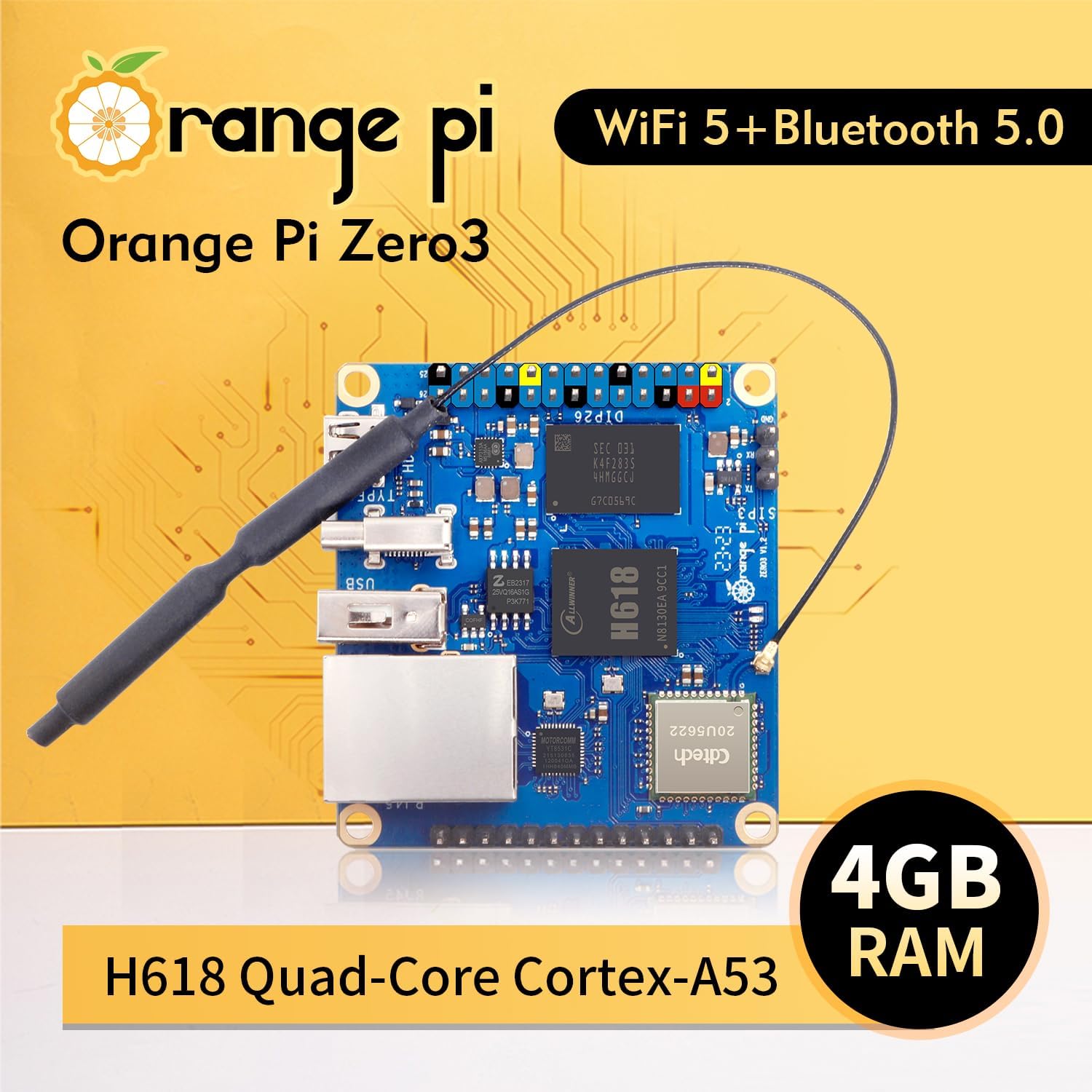

Orange Pi Zero 3
Orange Pi Zero 3 Hardware specification

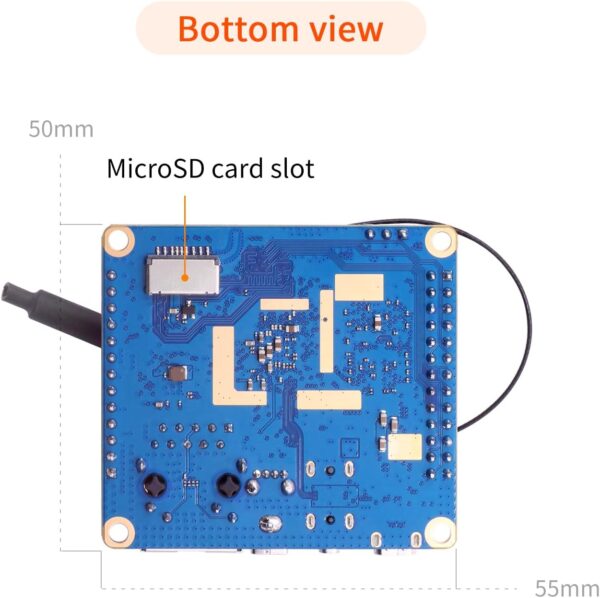

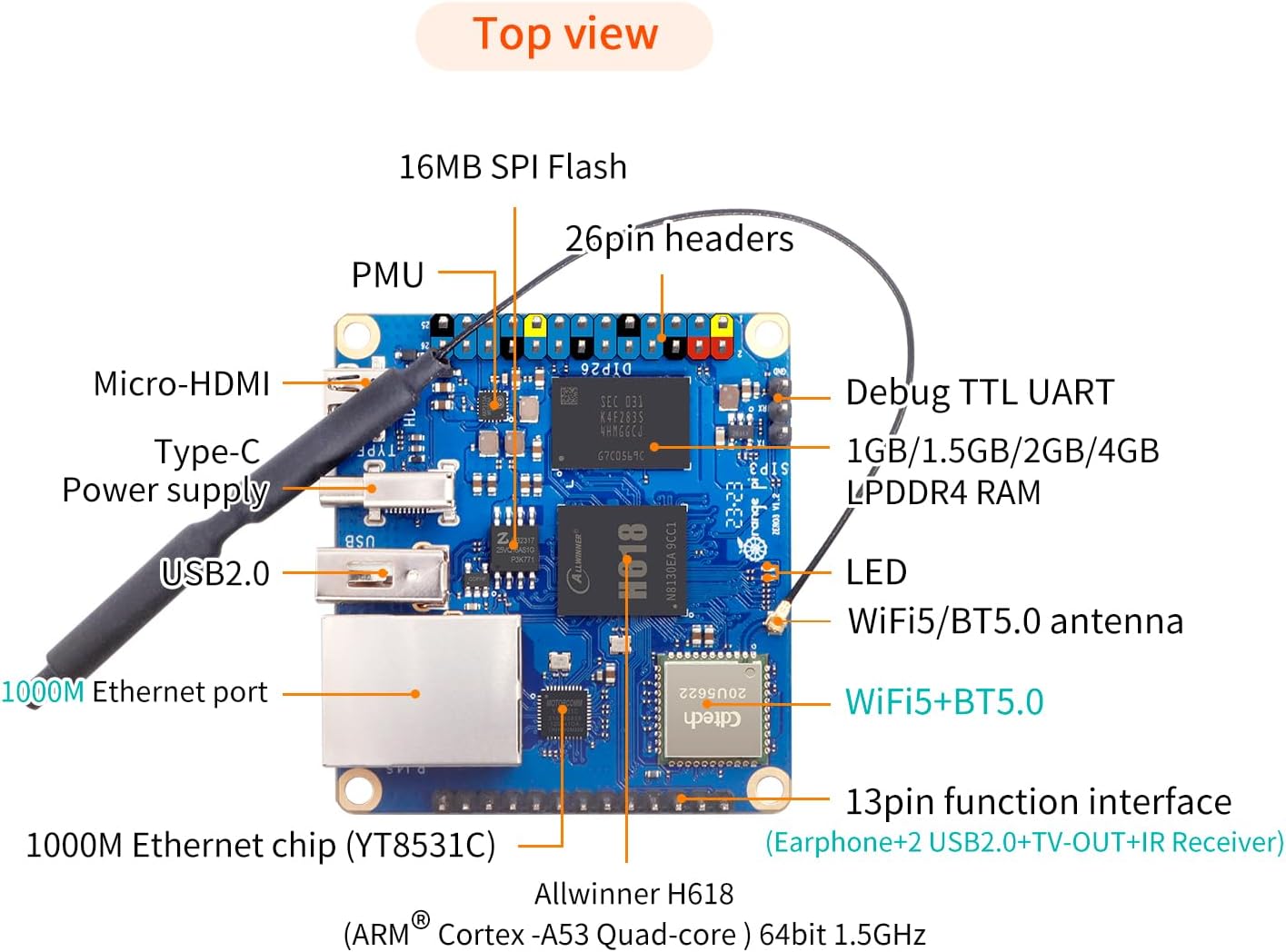

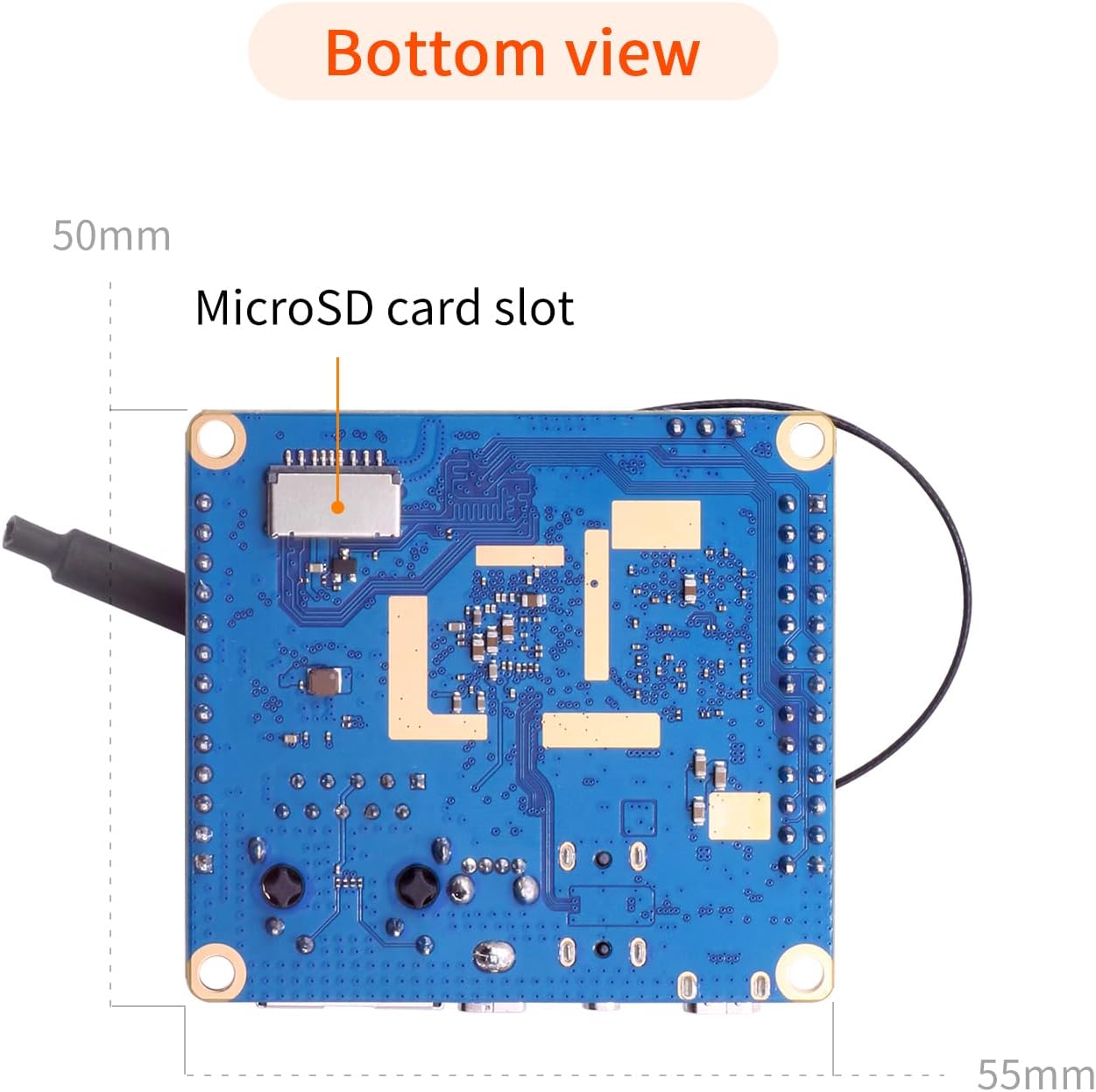

CPU Allwinner H618 Quad-core Cortex-A53 processor 1.5GHz GPU • Mali G31 MP2 • Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Memory 1GB/1.5GB/2GB/4GB LPDDR4 On-board storage 16MB SPI Flash On-board WiFi + Bluetooth Supports WiFi5 and Bluetooth 5.0 Network 10M/100M/1000M Ethernet interface Audio input/output 13Pin expansion port supports 2-ch output 1-ch input Video output • Micro HDMI up to 4K@60fps • TV-Out:13Pin supports 1-ch TV CVBS output UART 3Pin Debug UART USB USB 2.0 * 3(two of which lead from the expansion board) SD card interface Micro SD card interface Expansion interface • 26Pin GPIO interface • 13Pin GPIO interface Power input 5V3A, Type-c connector OS Support Android 12 TV，Debian11，Debian12，Ubuntu22.04，Ubuntu20.04 Product size 50mm*55mm Weight 30g
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.3 out of 5 stars 34
4.2 out of 5 stars 20
4.2 out of 5 stars 9
3.5 out of 5 stars 36
Price
$24.99$24.99 $26.99$26.99 $30.99$30.99
— no data
CPU
Allwinner H618 Allwinner H618 Allwinner H618 Allwinner H618
CPU architecture
Cortex-A53 Cortex-A53 Cortex-A53 Cortex-A53
CPU frequency
1.5GHz 1.5GHz 1.5GHz 1.5GHz
Memory
1GB 1.5GB 2GB 4GB
WiFi
WiFi 5 WiFi 5 WiFi 5 WiFi 5
Bluetooth
Bluetooth 5.0 Bluetooth 5.0 Bluetooth 5.0 Bluetooth 5.0
Size
50x55mm 50x55mm 50x55mm 50x55mm

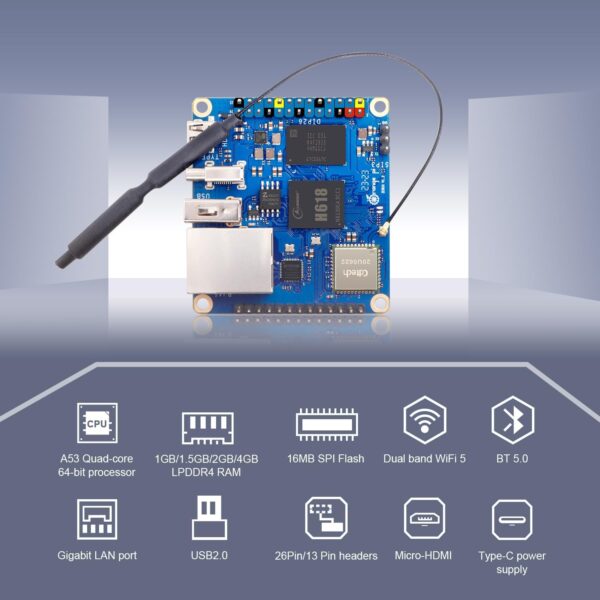

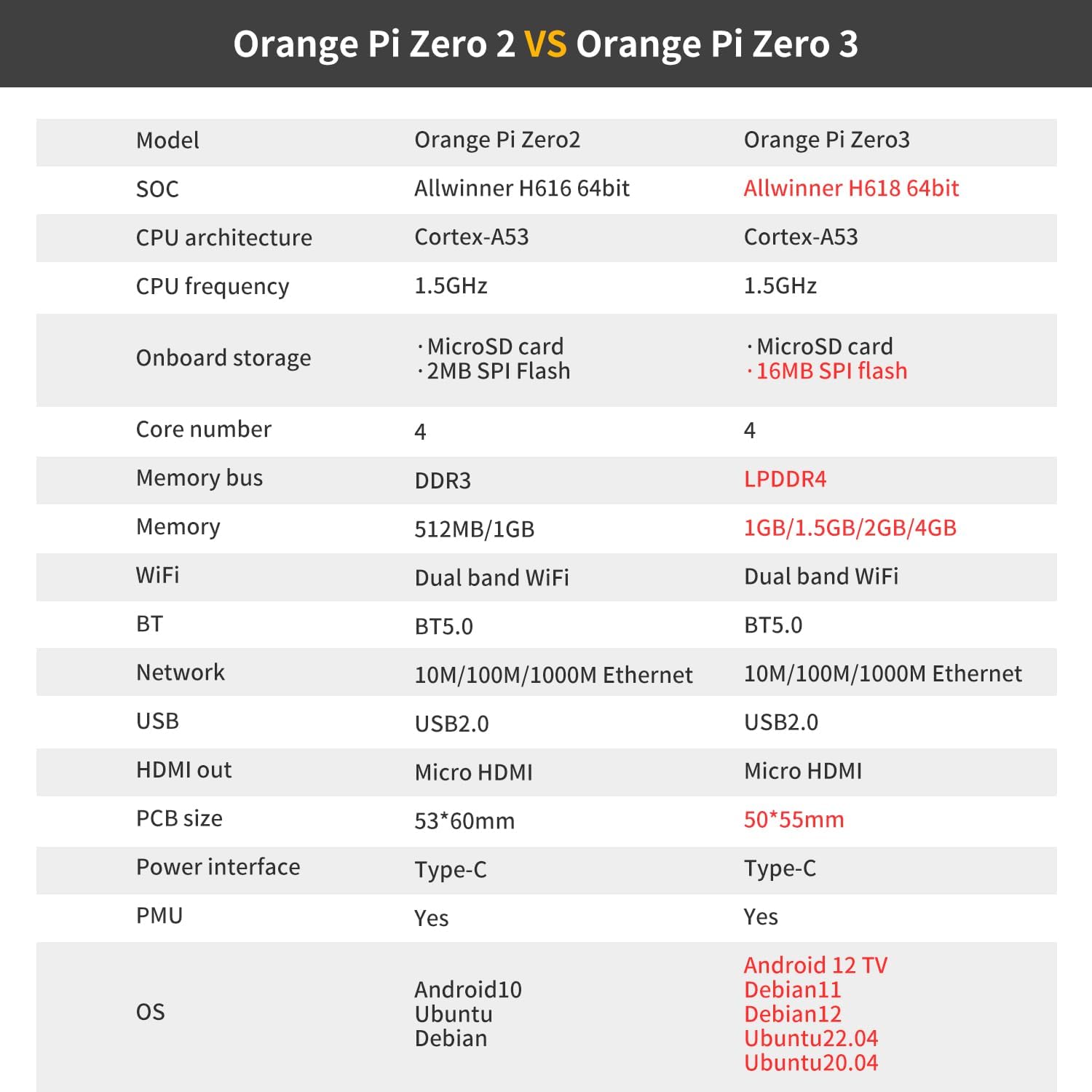

🍊[Fully Upgraded Version]: Orange Pi Zero 3 provides an update to the Allwinner H616-powered Orange Pi Zero 2 quadrupling the maximum memory to 4GB and embedding a larger 16MB SPI flash. The Orange Pi Zero 3 is a compact Allwinner H618 quad-core Arm Cortex-A53 SBC with 1GB/1.5GB/2GB/4GB RAM, 16MB SPI flash, micro HDMI output, Gigabit Ethernet, WiFi 5 and Bluetooth 5.0, a USB 2.0 port, and 2 headers for expansion.
🍊[4K Video Display Support]: Orange Pi Zero 3 delivering a seamless and immersive ultra-clear picture quality, our technology ensures stability, intricate details, and smoothness. It finds extensive applications in TV boxes, smart screen casting devices, and a wide range of other cutting-edge solutions.

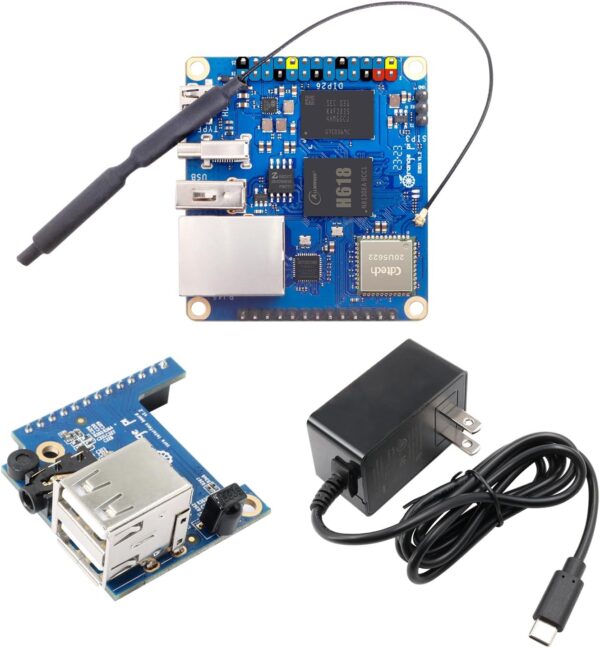

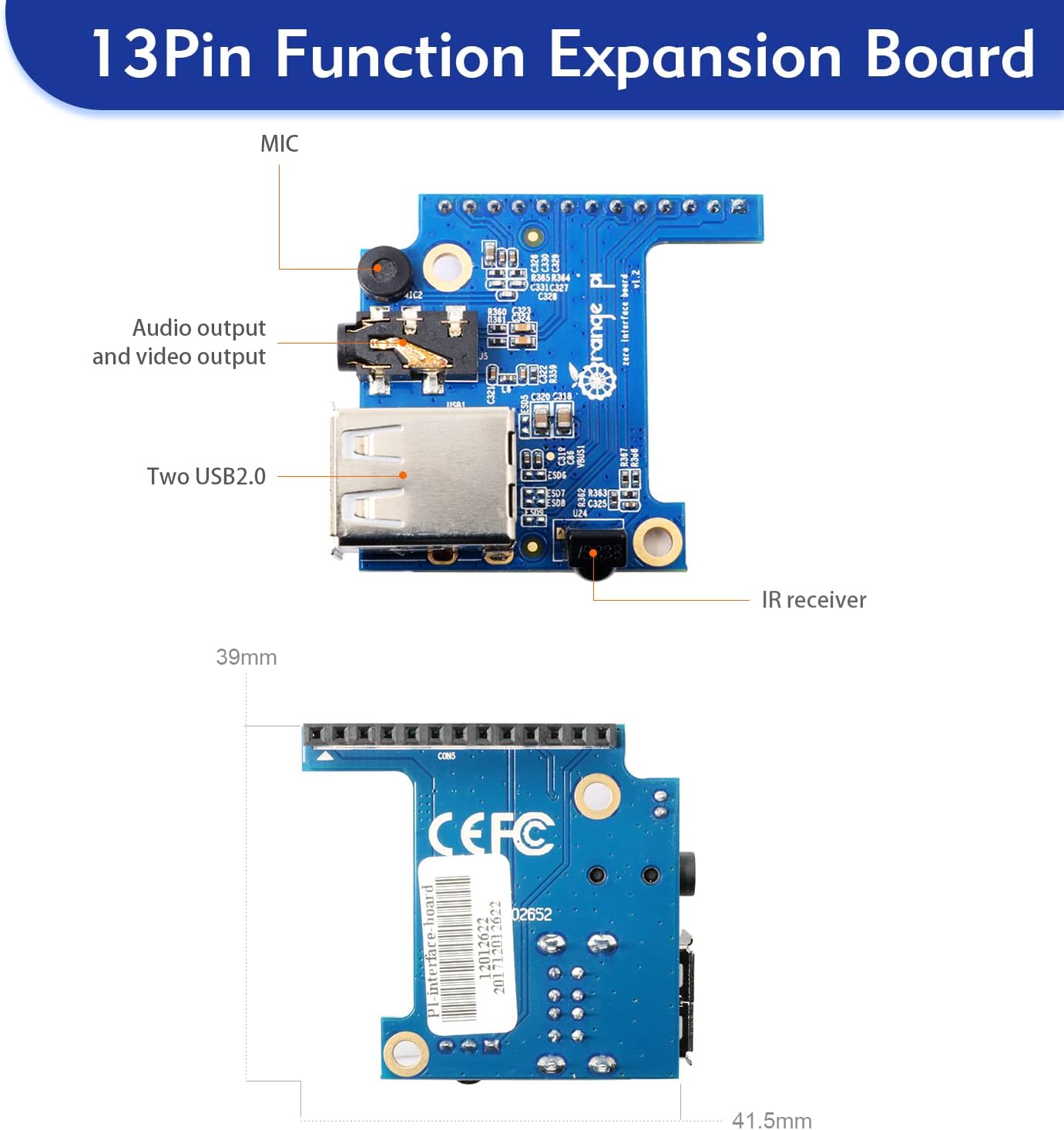

🍊[Support Expansion Board]: Orange Pi Zero 3 development board can support earphone, 2*USB 2.0, TV out and infrared functions through conecting expansion board by 13 pin headers. In addition, the 26 pin headers on the board further enriches the function of the main board and improves the development greatly.
🍊[Support Open-Source]：Orange Pi Zero 3 single board computers canccan build computer, wireless server, games, music sounds, video and speaker, pretty much anything else.The Orange Pi Zero 3 development board can run Android 12 TV, Debian11/12, Ubuntu22.04/20.04.
🍊[Genuine Guarantee and Official Authorized]: 👉Original guaranteed: Our products are all genuine , guaranteeing the highest quality.👉Quality guaranteed: Our all products that have undergone rigorous quality checks.👉Satisfaction guaranteed: Please contact us if you have any concerns about the product, we will do our best to offer satisfaction for all our customers.
Customers say
Customers give positive feedback about the board quality. However, the functionality receives mixed reviews, with some saying it works great while others report poor performance. Additionally, customers express concerns about the WiFi support, with one customer noting that the WiFi radio is not supported in existing kernels.
